0-10V PWM Dimmable 350ma 42W constant current LED Driver

FOB Reference Price:Get Latest Price
$14.00 - $16.00 / Piece | 1 Piece/Pieces (Min. Order)
Output Voltage:
60-120vdc
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-120-0350CD
Input Voltage:
100-265V
Output Type:
Single
Output Power:
42w
Output Frequency:
47-63HZ
Output Current:
350mA
Certification:
CE ROHS
Application:
LED Lighting
Warranty:
3 Years
Size:
180*60*34mm
cover:
plastic
Efficiency:
>88%
dimming mode:
0-10V dimmable
PF:
>0.9
Waterproof:
IP40
Name:
0-10V PWM Dimmable 350ma 42W constant current LED Driver
Supply Ability
Supply Ability:
3000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
inner box- white box + outer carton-standard exporting carton
Port
xiamen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Video Description

0-10V PWM Dimmable 350ma 42W constant current LED Driver

Product Description

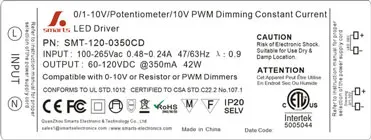

 Label
0-10V PWM Dimmable 350ma 42W constant current LED Driver
 Description
  • model: SMT-120-0350CD
  • input:100-265vAC / 47-63HZ
  • output: 60-120v @350mA  42watt
  • dimming type: 0-10v/PWM dimmable
  • warking mode: constant current
  • Efficiency > 88%

  • PFC> 0.92
  • cover material: plastic housing
  • waterproof rate: IP40
  • unit weight: 320g/pcs
  • product size: 180*60*34 mm
  • box size:324*298*188mm
  • pack qty: 20pcs/ctn
  • gross weight: 8kg/ctn
  • wire requirements:connecting terminal / 18AWG*20CM (waterproof type)
  • CE,ROHS approval
  • 3 years warranty

 Product parameters



      Model No.

     Input

    voltage

  Working

Frequency

Output

voltage

Output

Current

Output

power

  Working

   Temp.

IP rate
SMT-086-0350CD100-265vAC47~63Hz40-86V0-350mA30W-40~50°CIP40
SMT-077-0300CD100-265vAC47~63Hz40-77V0-300mA23W-40~50°CIP40
SMT-060-0500CD100-265vAC47~63Hz35-60V0-500mA30W-40~50°CIP40
SMT-050-0700CD100-265vAC47~63Hz20-50V0-700mA35W-40~50°CIP40
SMT-036-0900CD100-265vAC47~63Hz20-36V0-900mA32.4W-40~50°CIP40
SMT-120-0350CD100-265vAC47~63Hz60-120V0-350mA42W-40~50°CIP40
SMT-100-0500CD100-265vAC47~63Hz45-100V0-500mA50W-40~50°CIP40
SMT-065-0700CD100-265vAC47~63Hz30-65V0-700mA45W-40~50°CIP40
SMT-050-0900CD100-265vAC47~63Hz20-50V0-900mA45W-40~50°CIP40
SMT-040-1050CD100-265vAC47~63Hz15-40V0-1050mA42W-40~50°CIP40
SMT-040-1200CD100-265vAC47~63Hz20-40V0-1200mA48W-40~5

 Features

  • Constant current design with high accuracy.
  • International wide input voltage.
  • Wattage: 15w-200w
  • 8Hrs and 100% full load burn-in test.
  • High reliability designing solution
  • Cooling by free air convection
  • Suitable for LED lighting and moving sign applications
  • High efficiency,save energy ,protected environment
  • High stability and low ripple, increase light efficiency and decrease light attenuation
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant current
  • Passed high ,low temperature testing.
  • Integrity protection,over loading, over voltage over current

 Environment

  • Working Temperature : -40 ~ +50°C
  • Working Humidity : 20 ~ 95% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes

 Safety

  • Safety Standards :   EN61347-1 EN61347-2-13. IP40
  • Withstand Voltage :   I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
  • Isolation Resistance :  I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
  • EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
  • EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
