ac dimming power supply 36v 100w switching mode led driver

FOB Reference Price:Get Latest Price
$25.00 - $40.00 / Piece | 1 Piece/Pieces (Min. Order)
Output Voltage:
36V
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-036-100VM
Input Voltage:
100-265V
Output Type:
Single
Output Power:
100w
Output Frequency:
47-63HZ
Output Current:
0- 2777mA
Efficiency:
>86%
Certification:
CE ROHS ETL
Warranty:
3 Years
Dimming Mode:
DALI Dimmable
Weight:
1300g
Size:
230*68*45mm
cover:
aliminum
PF:
>0.9
waterproof rate:
IP67
Name:
ac dimming power supply 36v 100w switching driver
Supply Ability
Supply Ability:
300000 Piece/Pieces per Month for ac power supply 100w
Packaging & Delivery
Packaging Details
inner box-white box + outer carton- standard exporting carton packing for ac power supply 100w
Port
xiamen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Video Description

 ac dimming power supply 36v 100w switching mode led driver

Product Description

 Specification

Model

SMT-012-100VM

SMT-024-100VM

SMT-036-100VM

Output

DC Voltage

12VDC

24VDC

36VDC

Voltage Accuracy

±0.5V

Rated current

0~8.33A

0~4.16A

0~2.77A

Rated power

100W

100W

100W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF>0.95/100V, 220V

Full Load Efficiency(Typ.)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

AC

Current(Typ.)

0.950A(110,220V)

1.030A(110,220V)

1.023A(110,220V)

Leakage current

<0.70mA/110, <0.72mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition

is removed

Over Current

<1.4*I out

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13, IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (>50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

1.3Kg

Size

230*69*45mm(L*W*H)

packing

355*215*215mm/10pcs/CTN    240*70*50 mm for inner box

Not

es

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

 Mechanical Specification

 ac dimming power supply 36v 100w switching mode led driver





  • Input Rubber cable  H03VV-F 3G 1.0m2,the green/yellow cable connect with (FG),Brown or Black with AC (L),Blue or White with AC(N)
  • Input with Live Wire(L)  Neutral Wire (N)
  • Output LED SEC (LED+),(LED-)
  • Signal Dimming (DA1), (DA2)

 Dimming Operation

  • Connect DALI driver signal cable with DALI dimmers, then dim after controller scan and assign address



 Derating Curve

   ac dimming power supply 36v 100w switching mode led driver

  • Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the working life.

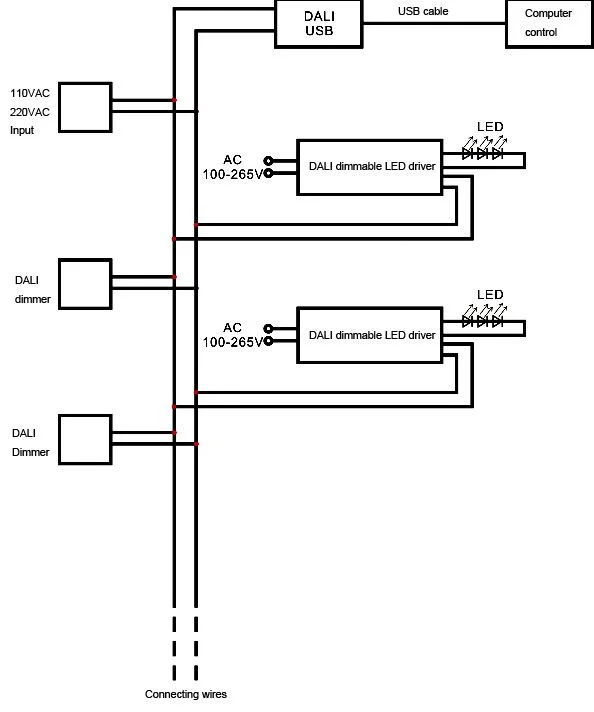

 Wire connecting diagram

Connecting solution :

 ac dimming power supply 36v 100w switching mode led driver



click for more information
