input 110v 220v ac led driver 12v dc 90w electronic led transformer

FOB Reference Price:Get Latest Price
$5.00 - $15.00 / Piece | 1 Piece/Pieces (Min. Order)
Output Voltage:
12V
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China
Brand Name:
SMARTS
Model Number:
SMT-012-090VW
Input Voltage:
100-265v
Output Type:
Single
Output Power:
90w
Output Frequency:
47-63HZ
Output Current:
7.5A
Certification:
CE ETL rohs
Warranty:
2 Years
Efficiency:
82%
Size:
168*68*43mm
weight:
900g
outer case:
Aluminum
Waterproof:
IP67
working mode:
constant voltage
Protections:
Short Circuit Overload Overvolt Overtemp
constant voltage led driver:
input 110v 220v ac led driver 12v dc 90w electronic led transformer
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month for input 110v 220v ac led driver 12v dc 90w electronic led
Packaging & Delivery
Packaging Details
inner box-white box + outer carton- standard exporting carton packing for input 110v 220v ac led driver 12v dc 90w electronic led transformer
Port
xiamen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 7 To be negotiated
Video Description

input 110v 220v ac led driver 12v dc 90w electronic led transformer

Product Description

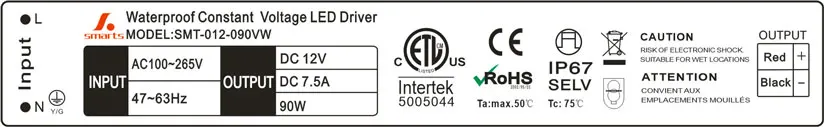

 Label
input 110v 220v ac led driver 12v dc 90w electronic led transformer
 Description
  •  Cooling by nature.
  • 100% full load burn-in test
  • High reliability designing solution
  • High efficiency,save energy ,protected environment
  • High stability and low ripple, increase light efficiency
  • And decrease light attenuation.
  • Meet to safety standard and EMC.
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Passed high ,low temperature and waterproof testing.
  • Integrity protection,over loading, over voltage ,over current.
  • 8Hrs and 100% full load burn-in test.

  Model



  Specification

SMT-012-090VW

SMT-024-090VW

  AC input voltage

100-265VAC

100-265VAC

  Frequency range

50~60Hz

50~60Hz

  DC output voltage

12VDC

24VDC

  Rated current

7.5A

3.75A

  current range

0~7.5A

0~3.75A

  rated power

90W

90W

  voltage tolerance

+/-0.5V

+/-0.5V

  Ripple & noise(max)

150mV

140mV

  Inrush current(Typ.)

 Cold start 50A/110, 220VAC

  Setup, Rise Time

 80ms/110,220VAC

  Hold Up Time (Typ.)

 60ms/110,220VAC

  Efficiency(Typ.)

 Efficency>83%

  Working mode

 constant voltage type

  Outer case & IP rate

 Aluminum,  IP67

  Dimension( L×W×H )

 200×68×53mm

  Net weight

 1100g

Protection

  1. Protections: Short circuit / Overload / Over voltage / Over temperature.
  2. Protection type : Constant current limiting type; Shut down o/p voltage, re-power on to recover.
  3. Over Voltage : Shut down and latch off o/p voltage, re-power on to recover.
  4. Over Temperature : 85°C±10°C.

Environment

  1. Working Temperature : -30 ~ +60°C
  2. Working Humidity : 20 ~ 90% RH non-condensing
  3. Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH

Safety

  •  Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
  •  Withstand Voltage : I/P-O/P: 3000KVAC
  •  Isolation Resistance : I/P-O/P:100M Ohms/500VDC
  •  MTBF : 50Khrs min. MIL-HDBK-217F (25°C )

Certificates

 CE(EMC+LVD), ROHS, ETL

Application



 Our products are widely used in various industries, such as

  • Indoor LED illuminating lights,
  • LED Neon,
  • LED urban Decoration
  • LED Lighting Advertising,
  • LED Display,
  • Safety Protection Apparatus,
  • Telecommunications,
  • Networks,
  • Vehicle Lights, Controller Panels, etc.

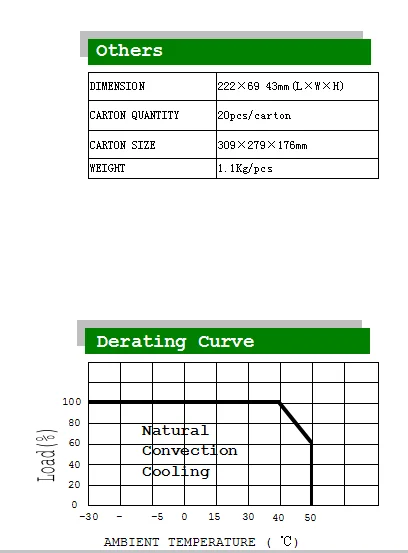

 Mechanical Specification



    input 110v 220v ac led driver 12v dc 90w electronic led transformer     input 110v 220v ac led driver 12v dc 90w electronic led transformer    input 110v 220v ac led driver 12v dc 90w electronic led transformer
